gasoline motor oil filling machine Car Engine oil motor oil filling packing machine line

short description:

The oil filling production line produced by Planet Machinery adopts servo control piston filling technology, high precision, high speed stable performance, fast dose adjustment features.

The oil filling machine is suitable for edible oil, olive oil, peanut oil, corn oil, vegetable oil, etc.

The design and production of this oil filling equipment is in accordance with GMP standard requirements. Easily dismantle, clean and maintain. The parts which contact filling products are made of high quality stainless steel. The oil filling machine is safe, environmental, sanitary, adapting to various kinds of working places.

This video is for your reference,we will customized according to clients requirements


Product Detail

Product Tags

Product Display

filling heads
filling 1
filling 2

Overview

  1. Adopt German original SIEMENS (Siemens) PLC control to ensure the performance stability of the system.
  2. Select imported electricity, pneumatic control components, with stable performance.
  3. Photoelectric detection system adopts German products, with reliable quality.
  4. the leading anti-leakage devices ensure that no leakage occurs in the course of production.
  5. the primary-section delivery adopts variable frequency control,the following process adopts special double dislocation connection.
  6. High and low double speed filling can avoid the overflow phenomenon, and can significantly increase the production efficiency.
  7. Single-machine is adapted to multiple varieties, quick and easy adjustment.
  8. the humanization control system has intelligent protection functions. In case of fault alarm, it will display the reasons for faults to ensure the safety of production process.
  9. Electrically adjustable capacity system has real-time data tracking function, which allows touching the screen setting to realize the replacement of species, accurately, and conveniently and quickly.

Parameter

Material SS304/316L
Bottle Material PET/PE/PP/Glass/Metal
Bottle Shape Round/Square/Unique Square
Capping Method Screw cap, Press cap, Twisting Cap
Bottle Components Rapid replacement without tools, such as star wheels for bottle infeed and outfeed, and bottleneck clamps
Control System PLC and touch screen
Filing Precision ±1%
Filling material Oil,cooking oil,engine oil etc.
Power Supply 220V/380V 50/60HZ
Filling Speed 1000-6000 bottles per hour(Customized)
Filling Nozzles 2/4/6/8/10/12(Customized)
Dosing System Piston pump
Filling Capacity 100-5000ml(Customized)
Air Supplier 0.6-0.8MPa
Power 2.0KW
Weight 500kg(Customized)
Dimension(mm) 2500*1400*1900mm (Customized)

Machine configuration

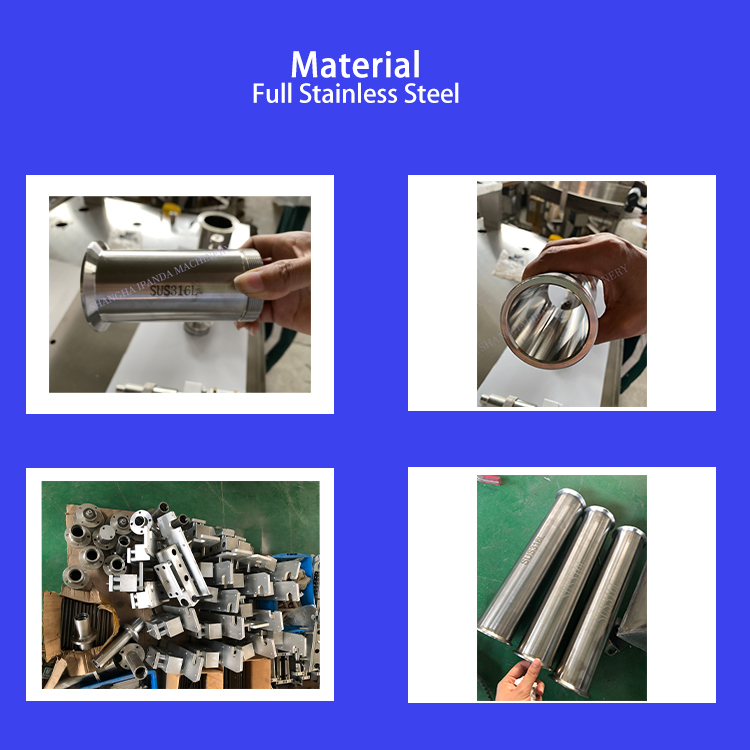

Frame

SUS304 Stainless steel

Parts in contact with liquid

SUS316L Stainless steel

Electrical parts


Pneumatic part


Features

1.Adopt German original SIEMENS (Siemens) PLC control to ensure the performance stability of the system.

2.Select imported electricity, pneumatic control components, with stable performance.

3.Photoelectric detection system adopts German products, with reliable quality.

4.The leading anti-leakage devices ensure that no leakage occurs in the course of production.

5.The primary-section delivery adopts variable frequency control,the following process adopts special double dislocation connection.

6.High and low double speed filling can avoid the overflow phenomenon, and can significantly increase the production efficiency.

7.Single-machine is adapted to multiple varieties, quick and easy adjustment.

Application

It is used for automatic filling of various liquids into bottles.Such as oil,cooking oil,sunflower oil,vegetable oil,engine oil,car oil,motor oil.

sauce filling4

The Machine Details

Piston cylinder

According to customer production capacity requirements could make different size cylinder

filling 1
IMG_5573

Filling system

Filling nozzle adopt bottle mouth diameter custom made,

Filling nozzle are with suck-back function, to avoid leakage suitable material oil, water, syrups, and some other material with good fluidity.

Oil use tree way valve

1. Connecting among tank, rotaty valve, position tank all with fast remove clip.
2. Adopt oil use three way valve, which is suitable for oil, water, and material with good fuidity, the valve is special designed for oil without leakage, ensure high accuracy.

sauce filling5

Adopt strong applicablity

No need to change parts,can quickly adjust and change bottles of different shapes and specification

conveyor
1

 Adopt Touch screen and PLC Control

Easy adjusted filling speed/volume

no bottle and no filling function

level control and feeding.

Photoelectric sensor and pneumatic door coordinate control ,lack bottle ,pour bottle all has automatic protection .

servo motor4
