Monoblock Fill Plug Cap Machines

  • Automatic 2 in1 filling and capping glass bottle perfume filling machine

    Automatic 2 in1 filling and capping glass bottle perfume filling machine

    This Vacuum small perfume bottle filling and crimping machine is auto negative pressure vacuum filling, auto bottle detecting( no bottle no filling ), filling for three times. Auto dropping of crimp pump cap, circulation of spray bottles’ die set, It is wide adaptability which can meet to requirements of different dimension and filling volume of containers.
    This filling machine can be divided into automatic bottles feeding (Also can use choose manual load bottle) automatic filling, automatic pump cap capping head, pre-capping head for regulate and tighten up pump cap head and automatic capping etc.

    This is automatic perfume filling and capping machine video,our machine is customized according to your requirements



  • Customized Automatic1/2/4 nozzles perfume liquid Filling Line

    Customized Automatic1/2/4 nozzles perfume liquid Filling Line

    This Vacuum small perfume bottle filling and crimping machine is auto negative pressure vacuum filling, auto bottle detecting( no bottle no filling ), filling for three times. Auto dropping of crimp pump cap, circulation of spray bottles’ die set, It is wide adaptability which can meet to requirements of different dimension and filling volume of containers.
    This filling machine can be divided into automatic bottles feeding (Also can use choose manual load bottle) automatic filling, automatic pump cap capping head, pre-capping head for regulate and tighten up pump cap head and automatic capping etc.

    This is automatic perfume filling and capping machine video,our machine is customized according to your requirements



  • China Wholesales Customized Automatic 1/2/4 Nozzles Perfume 2 in 1 Filling line

    China Wholesales Customized Automatic 1/2/4 Nozzles Perfume 2 in 1 Filling line

    This Vacuum small perfume bottle filling and crimping machine is auto negative pressure vacuum filling, auto bottle detecting( no bottle no filling ), filling for three times. Auto dropping of crimp pump cap, circulation of spray bottles’ die set, It is wide adaptability which can meet to requirements of different dimension and filling volume of containers.
    This filling machine can be divided into automatic bottles feeding (Also can use choose manual load bottle) automatic filling, automatic pump cap capping head, pre-capping head for regulate and tighten up pump cap head and automatic capping etc.

    This is automatic perfume filling and capping machine video,our machine is customized according to your requirements



  • Customize Automatic Glass Bottle Perfume  Filling Line

    Customize Automatic Glass Bottle Perfume Filling Line

    This series packing machine is used for filling and sealing for liquid products with spray bottle caps and pump caps. also can customized according to bottle samples which offered by customer., This machine integrates filling, inserting, and capping function together.The filling precision is high.

    This is automatic perfume filling and capping machine video,our machine is customized according to your requirements





  • small scale pharmaceutical medical vial liquid filling capping machine

    small scale pharmaceutical medical vial liquid filling capping machine

    This compact line is specially designed for the requirement of low output and small serial production with various sizes of the container, the major machine parts procured from well-know brand, adopt smart control system. The line benefits our customers by its few change parts and changing parts quickly.

    The entire synchronized filing line in stable running, easier operation, low noise, no pollution to production environment, the designing and manufacturing are being in compliance with ISO standard, cGMP guideline, FDA’s CFR211.67a regulation, CE standard, Principle of Human Machine Engineering: oRABS, cRABS, lsolator system are possible to provide optionally. The container sizes applicable range from 2m-100ml

    with maximum production speed of the whole line up to 120vias/min.

  • Automatic Filling and Capping Machine for Injection Vials Sterile Filling Machine line

    Automatic Filling and Capping Machine for Injection Vials Sterile Filling Machine line

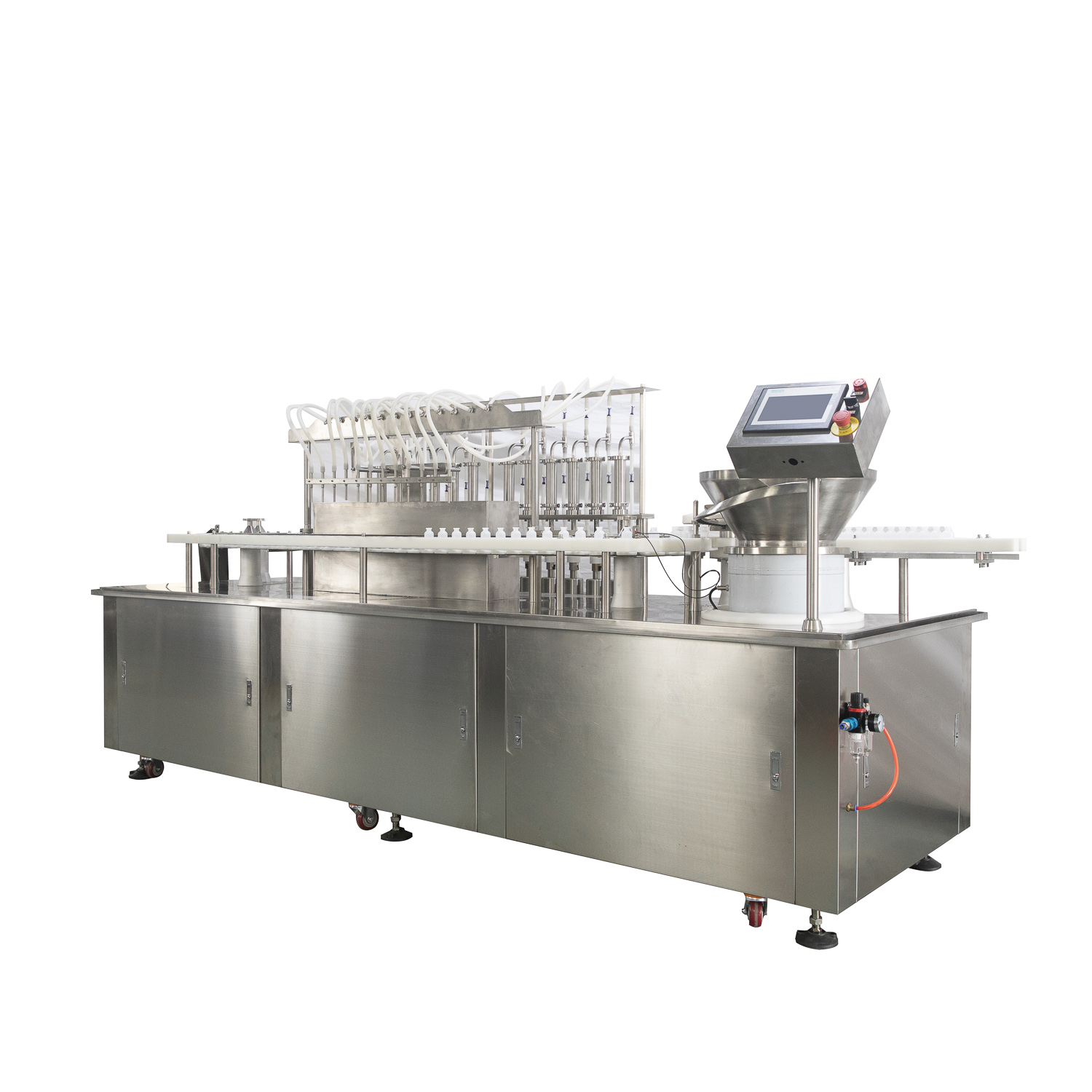

    Automatic Vial Filling & Capping Machine BotCN-Cap 4 is specially designed for small-quantity filling, stopper pressing and seal capping in pharmaceutical, light chemical, foodstuff and other industries. It can finish the production process of a series of automatic steps–vial feeding, metering and filling, stopper pressing, seal cap feeding and capping, etc. The whole machine is made of 304# stainless steel with strong resistance to corrosion. Due to PLC and HMI, it is easy and convenient to operate the machine. Besides, as the machine is driven by servo motor and vials are filled by peristaltic pump, the machine has high precision, fast speed and high output. The equi-index plate vial-feeding mechanism has high positioning accuracy. The loading quantity of peristaltic pump can be adjusted in a wide range. The components of drive system are processed with high-quality steel, of which the surface is treated to avoid blackening and the hardness is strengthened to improve the service life. In addition, the machine is equipped with the frame made of 304# stainless steel, and a protective cover composed of PC transparent boards.

    322A8868
  • Automatic 4 Heads Face beauty Cream Vertical Cosmetics Paste Bottle Filling Machine With Feeding Pump

    Automatic 4 Heads Face beauty Cream Vertical Cosmetics Paste Bottle Filling Machine With Feeding Pump

    This  Cosmetics Paste Bottle filling and capping machine 50ml vial syrup filling machine used for the filling production line of reagents and other small-dose products. It can realize automatic feeding, high-precision filling, positioning and capping, high-speed capping, and automatic labeling. This machine adopts mechanical rotation to ensure accurate and stable operation, low noise, low loss, and no air source pollution. The whole machine is made of stainless steel 304, which meets GMP requirements.

    paste filling machine

    Features

    1. The bottle entering mode can be in different scheme based on the user’s requirement and bottle shape feature.

    2. Adopting 316L stainless steel piston cylinder, and ceramic plunger type cylinder or designated method by user for precision filling, the filling accuracy is ±0.5~1%
    3. The function of automatic alarm and stop when filling needles deviate from bottle neck.
    4. The unique inlet and outlet check valve and the precision machining to ensure not dropping when filling. The filling needle will move up and down or submersible filling, to prevent liquid bubbling or splashing.
    5. The specially designed lid and lid feeding matched automatic precisely up with capping, accurately complete each mechanical motion cycle, such as crabbing lid, capping, and others, the whole process in unison, stably and reliably, without dropping lid.
    6. The whole production line of intelligent control has the function of chain control for upstream and downstream working equipment.

    7. The surface of main parts of the whole production line is made of SUS 304 stainless steel, hardness of anodized aluminum alloy, non-toxic polymeric materials, etc. which comply with GMP rules.
