Automatic Medical Reagent Liquid Test Tube Filling Capping Machine

short description:

This machine is mainly used for automatic bottle unscrewing and capping (capping) of plastic bottle reagents. This machine adopts automatic bottle sorting, flat positioning upper mandrel, positioning gland, reasonable design; working table is protected by stainless steel material, and the whole machine meets GMP requirements. The transmission of this machine adopts mechanical transmission, the transmission is accurate and stable, there is no air source pollution and there are errors in the coordination of various mechanisms. When working, the noise is low, the loss is low, the work is stable, and the output is stable. It is especially suitable for small and medium batch production.

This video is automtic reagent tube filling and capping machine,If you have any products you are interested in, please send an email to us


Product Detail

Product Tags

Product Display

eye drop filling 2
vial filling (3)
Peristaltic pump

Overview



It’s a series of products specially designed for biochemical reagent bottles. It is composed of host, rotary conveying,clamping conveying and bottle holder. It is suitable for all products in Hitachi series.The design adopts peristaltic pump for filling, and the measurement is accurate; The swing arm is used to hook the upper cover, and the positioning is accurate;Pneumatic control is adopted to clamp the screw cap, which will not cause wear to the shape of the bottle cap;The height and clamping force of the screw head are easy to adjust and control.



Parameter

Accuracy ±2%
Speed 0-40 bottles/min
Upper cover Manipulator takes off the upper cover
Voltage 220V/50Hz
Power 3 KW
Dimensions 3600mm×1200mm×1700mm
Weight 580kg

Machine configuration

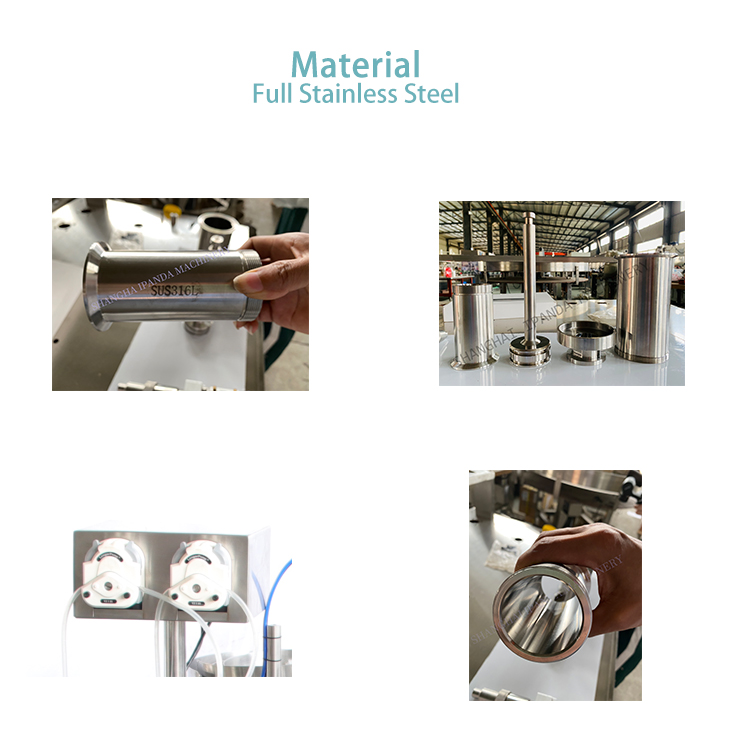

Frame

SUS304 Stainless steel

Parts in contact with liquid

SUS316L Stainless steel

Electrical parts


Pneumatic part


Features

1. Adopting peristaltic pump to fill, suitable for various liquid filling, it's very easy quick to dismantle liquid pipes for washing or replacement, no pollution, saving materials & enhancing working efficiency.

2. With humanized design, filling dosage can be directly adjusted on touch screen, easy to adjust for different bottles, convenient & easy to operate.

3. Adopting grab type servo capping heads, capping torque can be easily adjusted, with nice capping effect, reliable & delicate.

4. With PLC & touch screen to control, formal saving, auto counting function, no bottle, no filling, auto fault alarm, easy to link production line, with high automation.

5. Mainly made of top-quality famous brands for spares, reliable & durable.

The Machine Details

This machine adopts automatic bottle sorting, flat positioning upper mandrel, positioning gland, reasonable design;

bottle sorting machine
Peristaltic pump
eye drop filling 2

Peristaltic pump filling, high cleanliness, in line with medical health standards.

Double head filling, double head capping, greatly improve the efficiency.

Adopt a swing lifting cam, lifting and swinging automatically insert the cap, the cap is automatically arranged by the vibration plate and automatically sent to the uploading cap station through the loading cap

The capping head adopts mechanical claw cover (servo motor controlled capping claw),the capping head Torque and torque are controlled by servo, and torque servo control.

nail polish filling3
spray filling (3)

Cap vibrating plate used to arrange cap automatically



All action is controlled by PLC and Touch screen. The surface of machine is SUS304, material contacted with liquid is 316L stainless steel, can be connect with labeling machine.

glue filling  (7)

Company profile

Shanghai IPanda accepts unique filling requirements of various non-standard products, provides the overall design of the manufacture line
